To achieve AI-based fully automated driving—R&D project on elemental technologies at DENSO

On June 9, 2020, DENSO Tech Links Tokyo #7, an event organized by DENSO Corporation, was held as a webinar. The theme was “Human Drivers and AI—Automated Driving from the Viewpoint of Human Characteristics.” DENSO employees who play a key role in advanced technology talked about the development of automated driving technology and research on AI, taking human characteristics into account, to realize new mobility.

The next speaker was Naoki Ito, General Manager of the Applied AI R&I Dept. , AI R&I Div., Advanced Research and Innovation Center. He introduced an R&D project using tracking, free-viewpoint image synthesis, and DNN accelerator to achieve AI-based automated driving.

Speakers
Naoki Ito
General Manager of the Applied AI R&I Dept., AI R&I Div., Advanced Research and Innovation Center

Four Automated Driving Levels and Future Mission

Naoki Ito: I will talk about DENSO’s initiatives in automated driving from the viewpoint of R&D on AI.

The theme of my presentation is DENSO’s initiatives on advanced driver assistance systems (ADAS) and automated driving (AD) systems. These will become a global trend in the future.

The vertical axis shows the target vehicles, including passenger cars or so-called “privately owned vehicles,” commercial vehicles such as trucks, and shared and service cars including taxis and small buses. The horizontal axis shows the AD/ADAS levels. The level increases from left to right.

Automated driving is categorized into four levels (Level 1 to 4). Active safety, which is shown on the left, and about half of ADAS/AD functions fall under Level 1 or 2. On Level 1 and 2, the driver is basically responsible for driving, and the system supports the driver. On Level 3 and Level 4, the system performs the driving task. On Level 3, the driver must take over driving when the system cannot handle it.

On Level 4, the fully automated driving system achieves driverless driving of small vehicles. Automated valet parking will also be required, though this may fall outside the definition of automated driving.

At present, Level 1 and Level 2 active safety technologies, including collision avoidance braking, adaptive cruise control (ACC), and lane keep assist (LKA) on expressways, are spreading.

Level 2 and Level 3 technologies will need to be developed for arterial and general public roads and Level 4 technologies for service cars in operational design domains (ODDs). Our department serves as an R&D team, so our mission is to develop elemental technologies for Level 3 and Level 4 and contribute to the company’s business.

Current Issues in Automated Driving

In research on automated driving, we must address various difficult issues. For example, the sensing performance must be maintained to cope with the backlight at the exit of a tunnel, as well as very poor weather conditions such as heavy rain and dense fog.

Even if the sensing performance is maintained, objects must be detected by the system. Ordinary traffic participants include vehicles, pedestrians, and bicycles. Sometimes there may be unfamiliar objects on the road, and they must be detected. Collision with animals that may enter the road must also be avoided. If a road which was open yesterday is under construction today, it is necessary to make a detour. There are many difficult situations to cope with.

Human drivers can correctly understand the situation based on appropriate judgment, but this is a very difficult problem for fully automated driving.

As I explained, automated driving systems are expected to evolve gradually from simple systems to more complicated systems. Applications will spread from expressways, where it is relatively easy to achieve automated driving, to arterial and general public roads.

There are various challenging issues from the viewpoint of R&D, so this is an exciting field of research.

What Can Be Achieved by Using AI

AI is one solution to address these challenging issues. Here, AI refers to deep learning and machine learning technologies. We have been working to apply AI technologies to vehicles.

Alt

You may be familiar with the above figure. Image recognition technologies undergo benchmarking each year. The lower the point on the graph, the higher the accuracy. The recognition accuracy used to be improved only by a few percentage points annually, but deep learning technology, which is one type of AI technology, improved the accuracy by nearly 10%. Deep learning and machine learning technologies have attracted much public attention and many researchers.

Today, the accuracy of image recognition, which is one of the specific tasks, is higher than that of recognition by humans.

We have been working to apply deep learning and machine learning technologies to ADAS/AD.

The figure below is a simple block diagram for automated driving. Information obtained from various sensors of a vehicle is used to recognize the surrounding environment and understand the scene. The recognition block outputs the results of recognition of objects, and the trajectory of objects can then be predicted. The vehicle behavior and trajectories are measured by using the prediction results to ensure proper control of the steering, braking, and acceleration.

We are attempting to use deep learning and other AI technologies to predict trajectories and plan paths, in addition to recognition.

DENSO’s Initiatives to Apply AI to Vehicles

This figure outlines DENSO’s approach to apply AI to vehicles.

Alt

Algorithms are the main focus of R&D on AI. To improve the accuracy of AI algorithms, a large amount of data will be required, but the larger the amount of data, the more time the learning process takes. We will need technologies to efficiently use computers for the learning process.

R&D on algorithms and computer technologies is actively being conducted around the world, so I do not believe that DENSO is the global leader in these technologies.

As various technologies and papers are presented around the world, we try to identify technologies that may be used for vehicles, apply them to vehicle systems, and determine their effectiveness. As described here, we are committed to developing technologies to achieve speedy implementation to systems.

Even if there is an algorithm which seems to have a high recognition performance, it may not work in real time in a vehicle system. We develop technologies to quickly attain real-time performance.

These three technologies alone are not enough to apply AI to vehicles. Specifically, the calculation resources in a vehicle are limited. Embedded technologies and semiconductor technologies are also required to operate AI properly.

Quality is a very important factor in vehicle production, so it is essential to assure the quality of AI.

Regarding the bottom two items of the pentagon, we have well-established embedded technologies as well as quality assurance technologies and expertise. It is essential to harness these capabilities and work on the five elemental technologies in a comprehensive manner in order to apply AI to vehicles.

Now, I would like to briefly introduce the development process of respective elemental technologies.

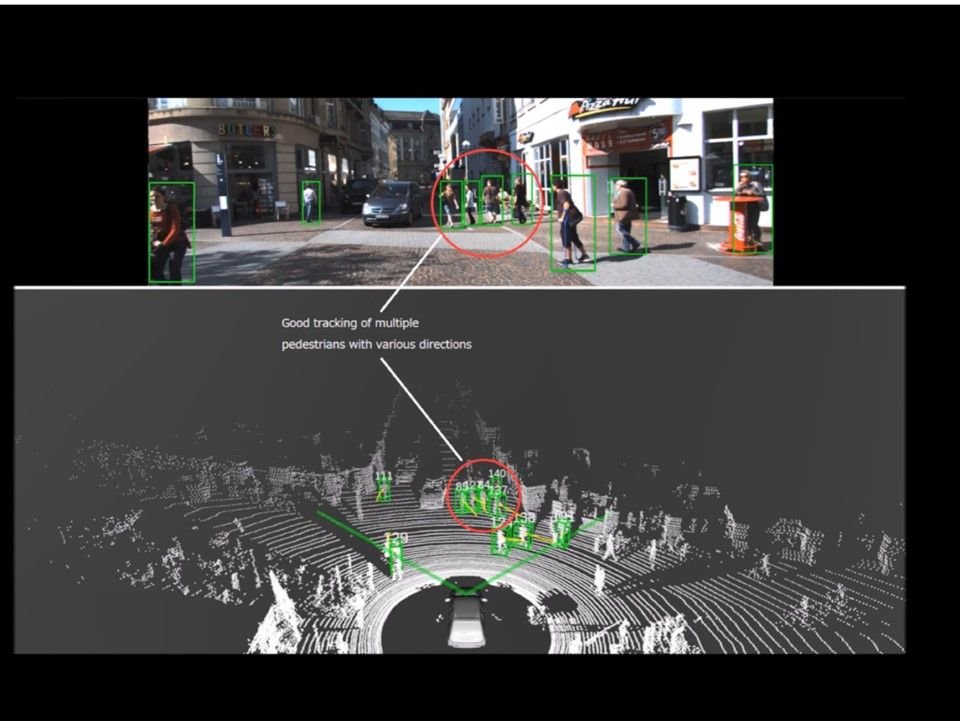

Tracking Algorithms

First, I will talk about algorithms, which are the main topic. The block diagram that I showed earlier is indicated (in the upper part of the slide). First, let’s take a look at the recognition process.
