Mitsubishi Electric to launch N-series 1200V SiC-MOSFET

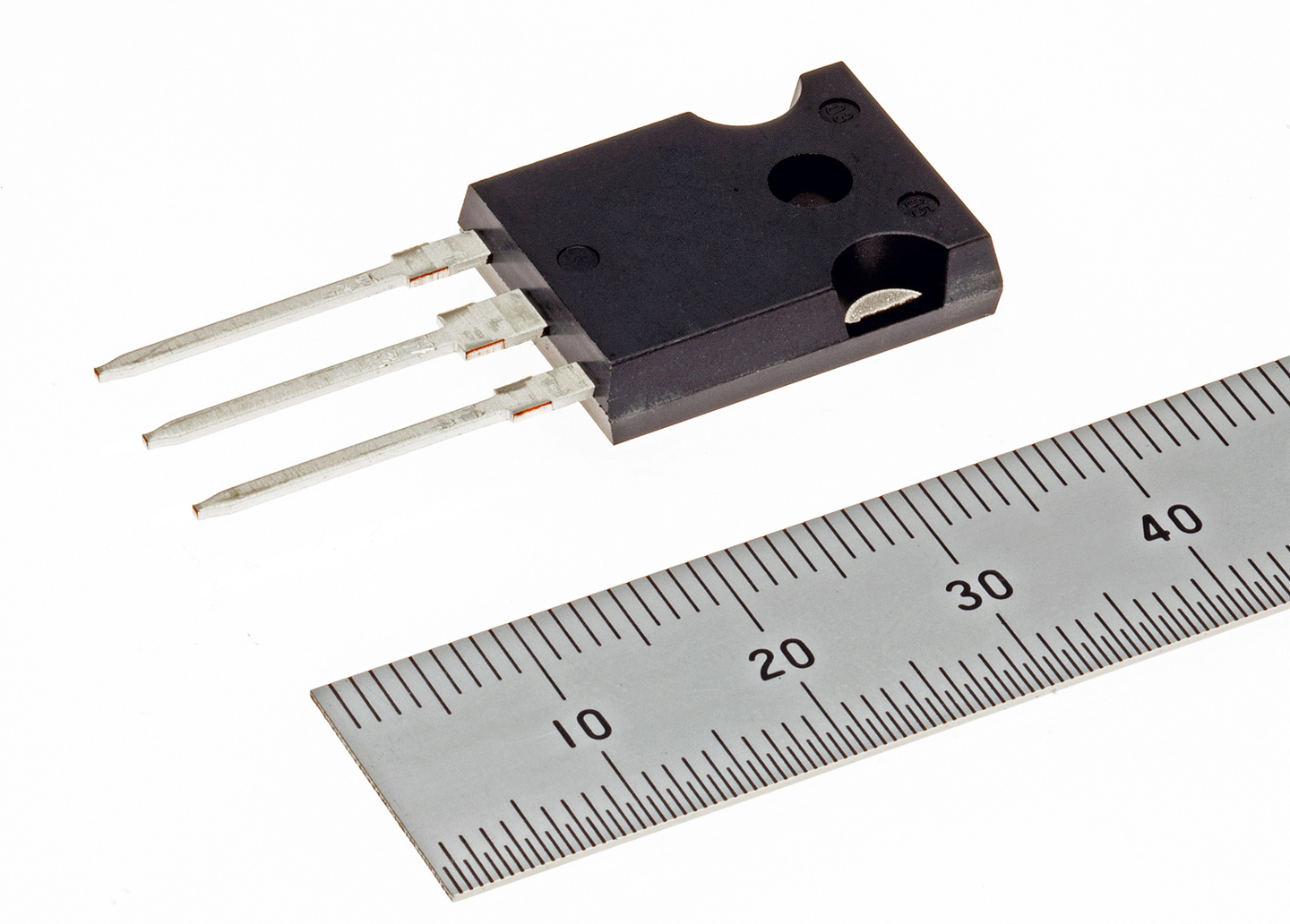

Mitsubishi Electric Corporation announced today the launch of its N-series 1200V SiC-MOSFET (silicon-carbide metal-oxide-semiconductor field-effect transistor) featuring low power loss and high tolerance to self-turn-on.

Mitsubishi Electric Corporation announced today the launch of its N-series 1200V SiC-MOSFET (silicon-carbide metal-oxide-semiconductor field-effect transistor) featuring low power loss and high tolerance1 to self-turn-on. The new series will help to reduce the power consumption and miniaturize power supply systems requiring high-voltage conversion, such as electric vehicle (EV) on-board chargers, photovoltaic power systems and more. Sample shipments will start this July.

Mitsubishi Electric will exhibit its new N-series 1200V SiC-MOSFET at major trade shows, including PCIM Asia 2020 in Shanghai, China from November 16 to 18.
1Input capacitance/mirror capacitance (Ciss/Crss), as calculated by Mitsubishi Electric

Product Features

      1. Reduced power consumption and miniaturization of power-supply systems
        • Junction field effect transistor (JFET) doping technology reduces both switching loss and on-resistance, achieving an industry-leading2 figure of merit (FOM3) of 1,450mΩ·nC. Power consumption in power-supply systems is reduced by approximately 85% compared to using conventional Si-IGBTs.
        • By reducing mirror capacitance4, self-turn-on tolerance improves by 14 times compared with competitor’s products. Thus, fast switching operation can be realized and helps reduce switching loss.
        • Reduced switching-power loss enables the downsizing and simplification of cooling systems as well as the downsizing of peripheral components, such as reactor by driving the power semiconductor with a higher carrier frequency5, thereby helping to reduce the cost and size of overall power-supply systems.
        • 2As of June 16, 2020 according to Mitsubishi Electric research
        • 3Performance index of Power MOSFET, calculated by multiplying the on-resistance by the gate-drain charge (100°C junction temperature). Smaller values indicate better performance
        • 4Stray capacitance between Gate and Drain existing in MOSFET structure (Crss)
        • 5Frequency that determines the ON/OFF timing of the switching element in an inverter circuit
      2. Six models for various applications including AEC-Q101 compliant models
        • The product lineup includes models which are qualified with Automotive Electronics Council’s AEC-Q101 standards. Therefore, the N-series SiC-MOSFET can be used not only in industrial applications such as photovoltaic systems, it can also be used in EV on-board chargers.

      Sales Schedule

      PRODUCT STANDARDS MODEL VDS RDS(ON)_TYP. IDMAX@25°C PACKAGE SAMPLE
      AVAILABILITY
      SiC-MOSFET AEC-Q101 BM080N120SJ 1200V 80mΩ 38A TO-247-3 July 2020
      BM040N120SJ 40mΩ 68A
      BM022N120SJ 22mΩ 102A
      BM080N120S 80mΩ 38A
      BM040N120S 40mΩ 68A
      BM022N120S 22mΩ 102A
